Fibre structure cabling,
Fibre Optic Patch Cords
FPC-OM2LCSCD001M

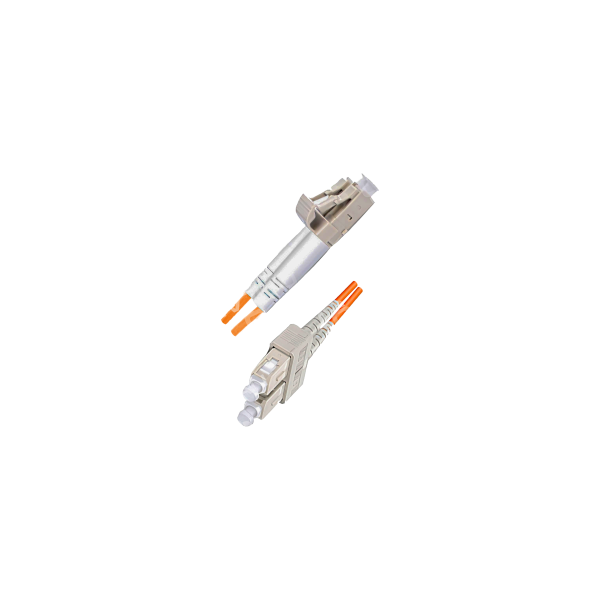

LC/UPC to SC/UPC, Duplex fibre optic patch cords, OM2, 1.8 mm jacket, Orange, low smoke zero halogens (LSZH), 1 meter
(In stock)
Osilan's fibre optic patch cords are optimal for Enterprise inter-connect, data centre and cross-connect applications. The patch cords complete connectivity from active equipment to passive optical equipment in main or distribution rack rooms. Fibre optic patch cords are available in OM1, OM2, OM3, OM4 or OS1, and OS2 fibre types terminated with ultra physical contact (UPC) zirconia ferrule connectors to meet the demands of all Ethernet applications.
Jacket Color
Connector B Type
Connector A Type
Patch Cord Type
Cable Length
Fibre Count
Outer Jacket
Fibre Type
|
| Items | Specifications |
| Cladding Diameter | 124.8±0.7 μm |
| Cladding Non-Circularity | ≤0.7% |
| Core-Cladding Concentricity Error | ≤0.5 μm |
| Coating Diameter | 245±5 μm |
| Coating Non-Circularity | ≤6.0% |
| Cladding-Coating Concentricity Error | ≤12.0 μm |
| ITU-T Standards | G.652.D for SM |
| G.651.1 for MM | |
| Attenuation | 1310nm ≤0.36 dB/km |
| 1550nm ≤0.25 dB/km | |
| 850 nm ≤3 dB/km | |
| 1300nm ≤1 dB/km |
