Outdoor fibre cable,
OADSS
OADSS-24OS2HDPE

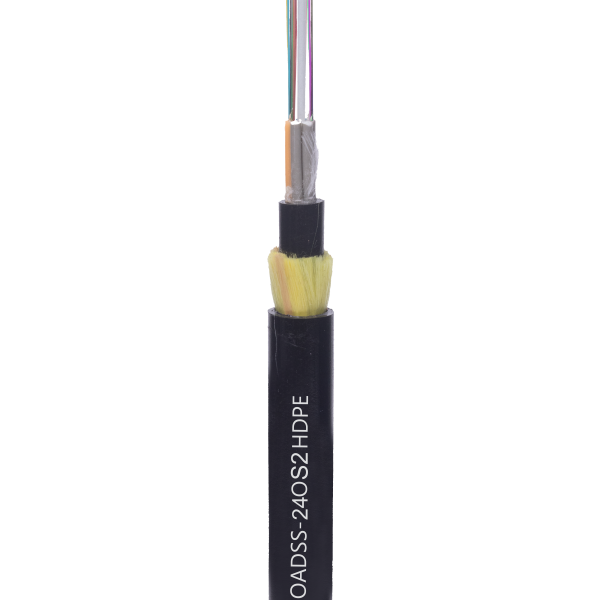

Outdoor All-Dielectric Self-supporting cable, Double Jacket with Aramid Yarn, 24 fibre core, OS2, HDPE
(In stock)
Osilan’s Outdoor All-Dielectric Self-supporting cable, Double Jacket with Aramid Yarn. is the optimal choice for any backbone in Outside Plant (OSP) Installations. The Outdoor All-Dielectric Self-supporting design is perfect for Aerial Applications and all outdoor installations. The cable quality and structure offer reliable transmission performance with additional crush and rodent protection.
Fibre Construction Cable
Cable Type
Cable Length
Fibre Count
Outer Jacket
Fibre Type
Jacket Color
|
|
| Items | Specifications |
| Cladding Diameter | 124.8±0.7 μm |
| Cladding Non-Circularity | ≤0.7% |
| Core-Cladding Concentricity Error | ≤0.5 μm |
| Coating Diameter | 245±5 μm |
| Coating Non-Circularity | ≤6.0% |
| Cladding-Coating Concentricity Error | ≤12.0 μm |
| ITU-T Standards | G.652.D for SM |
| G.651.1 for MM | |
| Attenuation | 1310nm ≤0.36 dB/km |
| 1550nm ≤0.25 dB/km | |
| 850 nm ≤3 dB/km | |
| 1300nm ≤1 dB/km |
