BULK COPPER CABLE, Cat 7A

SF7A-H0423-WH

Name: SF7A-H0423-WH
Brand: Osilan
SKU: SF7A-H0423-WH
Availability: InStock

Category 7A S/FTP Cables, 4Pairs, 23AWG Solid Copper, LSZH Sheath, colour White, 500M

(In stock)

Part #: SF7A-H0423-WH

Categories: BULK COPPER CABLE, Cat 7A

Osilan’s Cat7A cable solutions are flexible and cost-effective solutions that fully comply with category 7A/ Class FA standards. Cat7A cables are available in S/FTP shielded cable and with PVC or LSZH sheath, which is ideal for most of today’s LAN network requirements and specifications with designs that support 1000 MHz applications.

Jacket Material

Attribute	Value
LSZH	LSZH

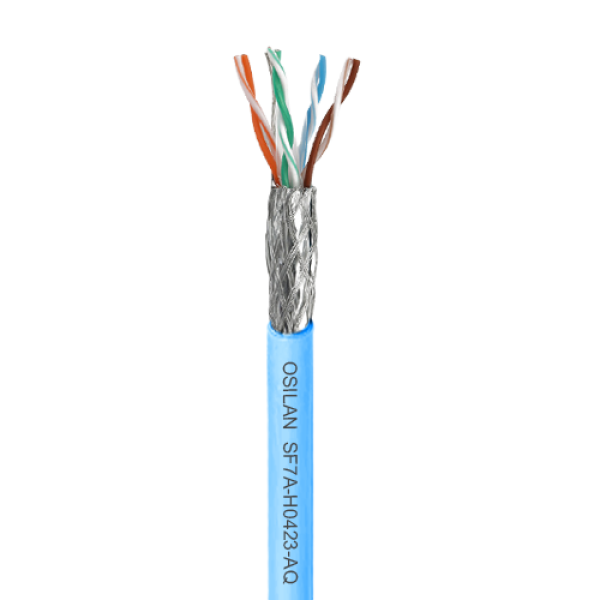

Category 7A S/FTP copper cable with channel characterized to 1000 MHz. 4 Pairs with aluminium foil on each pair. An overall braid surrounds all four pairs. 23 AWG solid copper conductors insulated with skin-foam PE. Supports IEEE 802. bt type 3,4 & PoE++ Standards. LSZH Sheath. 25-year system warranty.	Suitable for all category 7A backbone and horizontal Cabling applications. 10 Base-T (Ethernet), 100 Base-T (Fast Ethernet), 1000 Base-T (Gigabit Ethernet) and 10G Base-T (10Gigabit Ethernet). 155Mb/s ATM, 622Mb/s ATM, 1.2Gb/s ATM, Token Ring 4/16 & ISDN. IEEE 802.3af, IEEE 802.3at, IEEE 802. bt type 3 and 4.
