Outdoor fibre cable,
OF8A
OF8A-04OM2HDPE

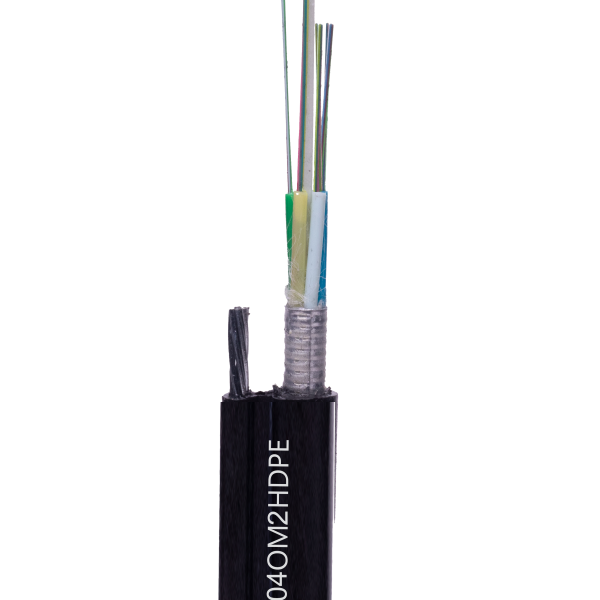

Outdoor Central Figure 8 Cable Loose Tube Fibre Cable, 4 fibre core, OM2, HDPE
(In stock)
Osilan’s Outdoor Figure 8 Uni Loose Tube cable, Single Jacket, Single Aluminium Polyethylene Laminated tape (APL), Supported with Figure 8 stranded wires tube, are the optimal choice for any backbone in Outside Plant (OSP) Installations. The Outdoor All-Dielectric Stranded Tube design is perfect for Aerial Applications and all outdoor installations. The cable quality and structure offer reliable transmission performance with additional crush and rodent protection.
Jacket Color
Fibre Construction Cable
Cable Type
Cable Length
Fibre Count
Outer Jacket
Fibre Type
|
|
| Items | Specifications |
| Cladding Diameter | 124.8±0.7 μm |
| Cladding Non-Circularity | ≤0.7% |
| Core-Cladding Concentricity Error | ≤0.5 μm |
| Coating Diameter | 245±5 μm |
| Coating Non-Circularity | ≤6.0% |
| Cladding-Coating Concentricity Error | ≤12.0 μm |
| ITU-T Standards | G.652.D for SM |
| G.651.1 for MM | |
| Attenuation | 1310nm ≤0.36 dB/km |
| 1550nm ≤0.25 dB/km | |
| 850 nm ≤3 dB/km | |
| 1300nm ≤1 dB/km |
